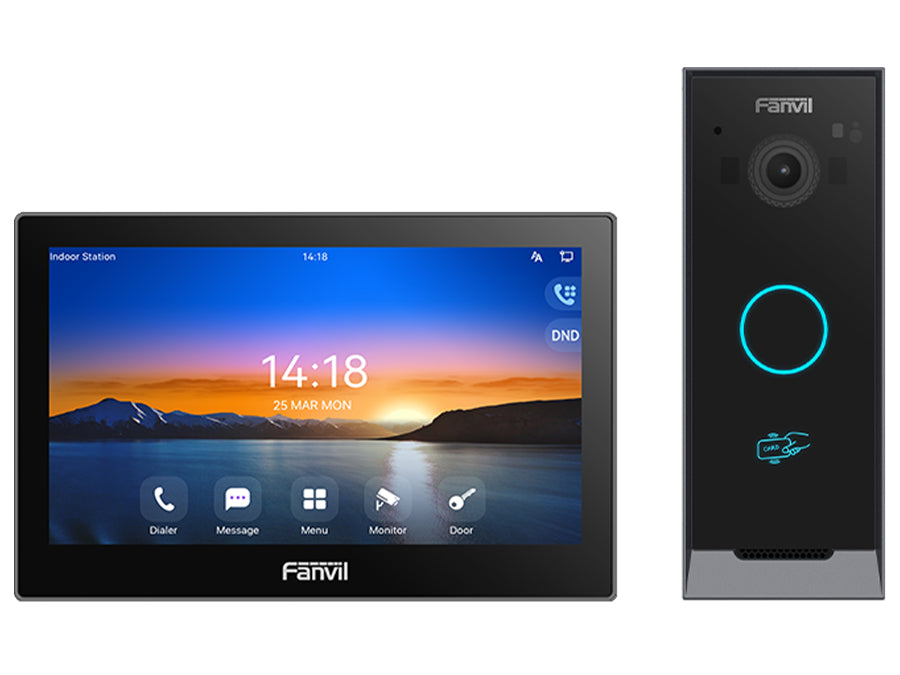

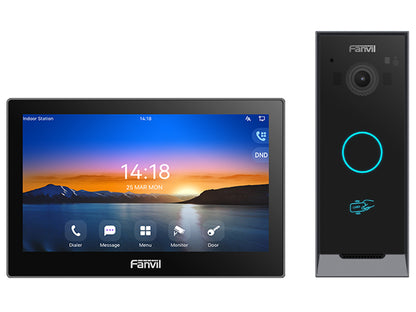

Fanvil Dual Band Video Intercom Kit

The Fanvil Dual Band Video Intercom Kit provides a comprehensive security solution by combining the i504W indoor station with the i60 video door phone. This system allows for seamless remote access control, enabling you to unlock doors or gates directly from the high-resolution touch screen or via the Fanvil Link mobile app. With support for both dual-band WiFi and wired Ethernet, this kit offers versatile installation options to suit any home or office layout.

Key Specs

• Indoor Station Screen: 7-inch color capacitive touch screen (1024x600)
• Indoor Station Interface: 1x 10/100 Ethernet, 8x Alarm Input, 1x Short Circuit Output, 1x Doorbell Input, 1x RS485
• Indoor Station Speaker: 2W
• Indoor Station Power: 802.3af/at PoE or 12V 1A DC
• Indoor Station Dimensions: 177.38 x 113.99 x 22.5mm
• Door Phone Camera: 2 MP with infrared support
• Door Phone Sensor: 1/2.9-inch CMOS
• Door Phone Viewing Angle: 140° (FOV), 100° (Horizontal), 57° (Vertical)
• Door Phone IP Rating: IP65
• Door Phone Power: 802.3af PoE or 12V 1A DC
• Door Phone Dimensions: 50 x 130 x 30 mm
• Connectivity: Dual Band 2.4G/5G WiFi or Cabled
• Operating Temperature: -10°C to 50°C

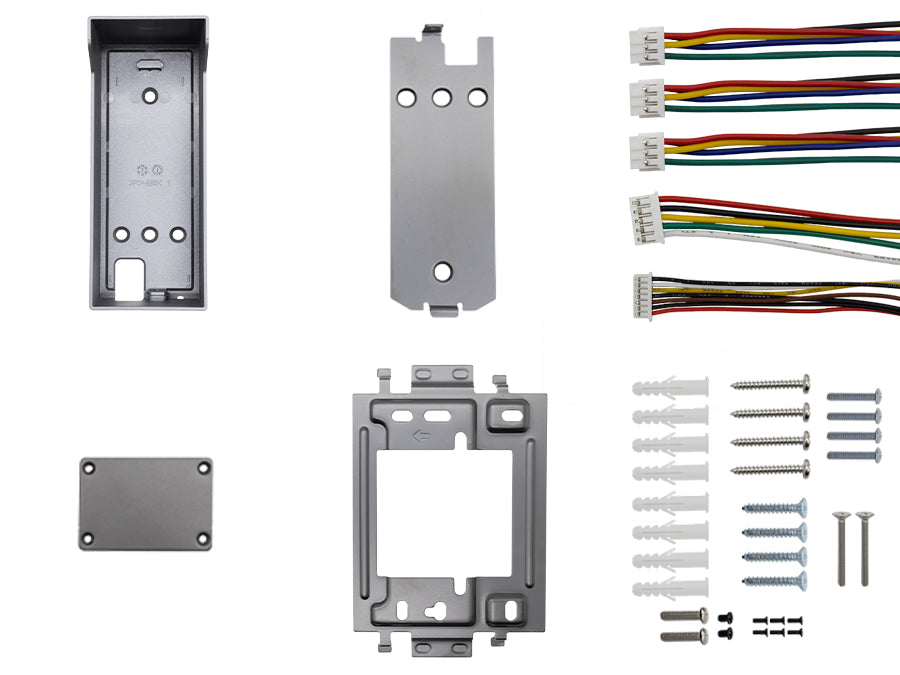

• Mounting: Wall Mount (Door phone includes rain cover)

1 Year warranty
