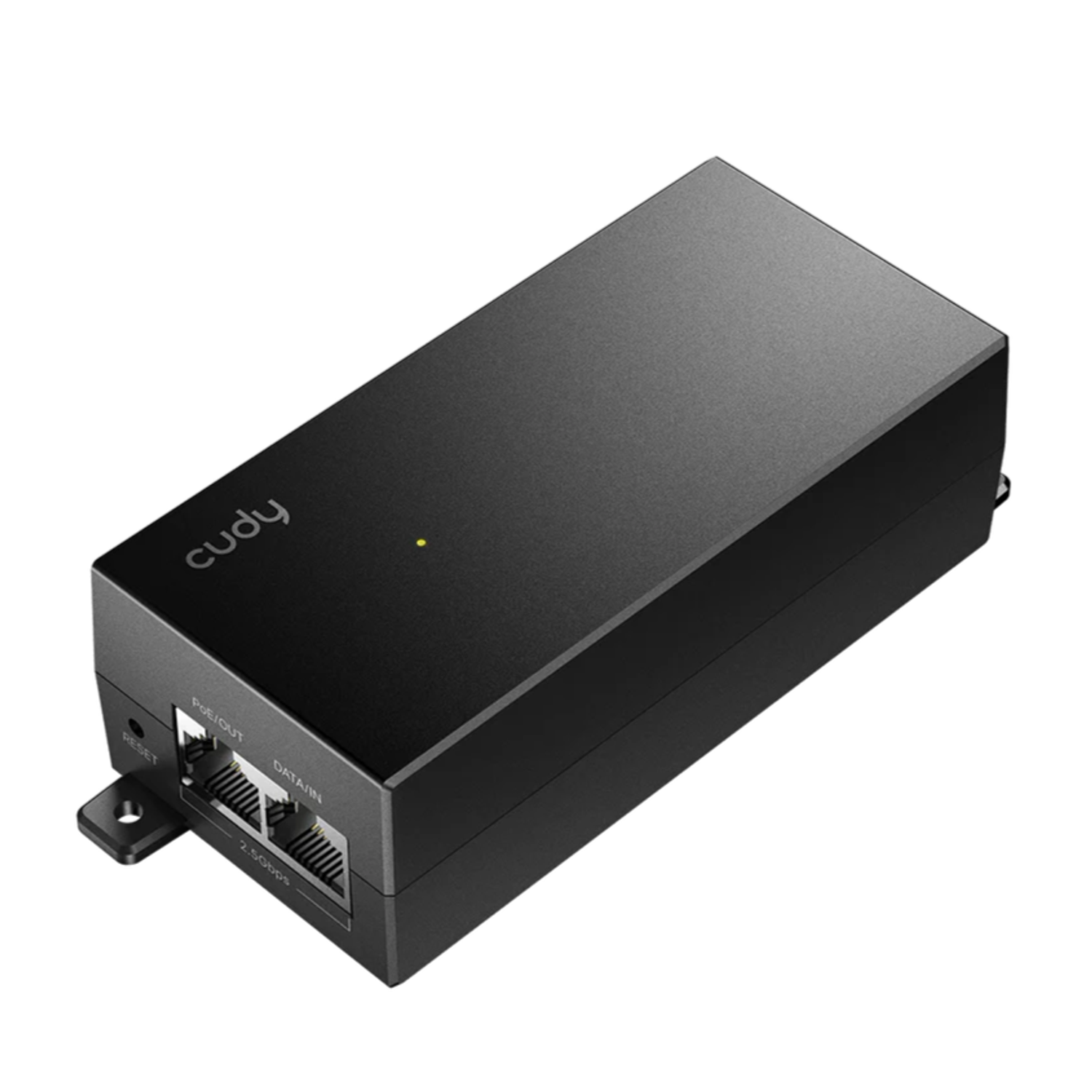

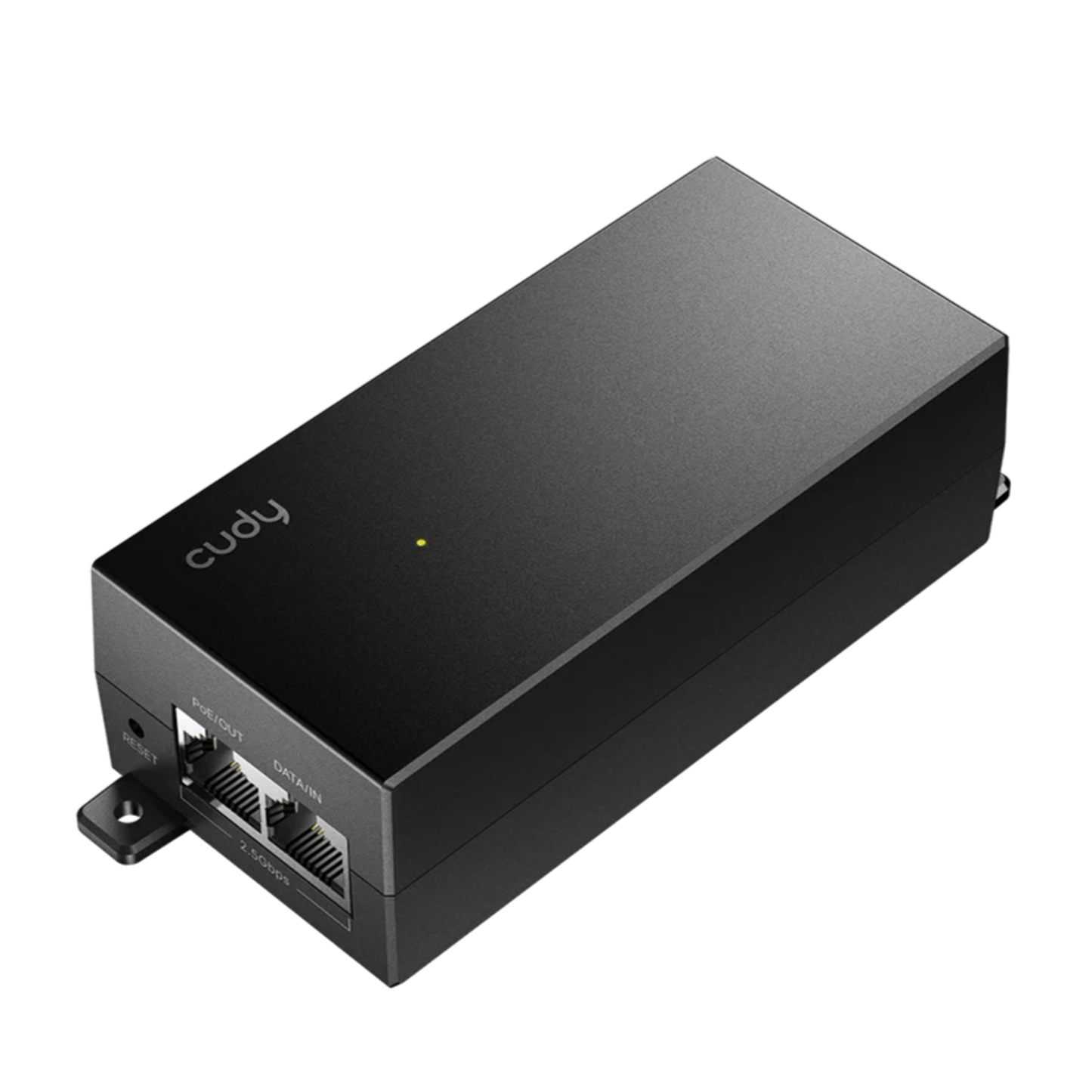

Cudy 30W 2.5Gbps Gigabit PoE+ Injector

The Cudy 30W 2.5Gbps Gigabit PoE+ Injector (POE200H) provides a high-speed power solution for network administrators, delivering up to 30W of power and 2.5Gbps data throughput over a single cable. This compact device allows you to upgrade your network infrastructure for IP cameras, access points, and VoIP phones without the need to replace your existing non-PoE switches. Designed for reliability, it features built-in surge protection and a versatile housing suitable for both desktop and wall-mount installations.

Key Specs

• Model: POE200H
• Data Rates: 10/100/1000/2500 Mbps
• PoE Power Output: Up to 30W (54V)
• PoE Standards: IEEE 802.3at / IEEE 802.3af
• Transmission Distance: Up to 100 metres (Cat. 5e or higher)
• Interface: 1x 2.5GbE RJ45 Data/In port, 1x 2.5GbE RJ45 PoE/Out port
• Pin Assignment: Mode A
• Surge Protection: Power (DM 4kV, CM 4kV), RJ45 (CM 4kV)
• ESD Protection: Level 3
• Input Voltage: 100–240V AC, 50/60Hz
• Dimensions: 12.3 x 5.1 x 3.5 cm
• Status Indicators: Power and PoE LEDs

What's in the Box

• 1 x Cudy 30W 2.5Gbps PoE Injector (POE200H) – Black
• 1 x Power Cord
• 1 x Installation Guide

24 warranty
