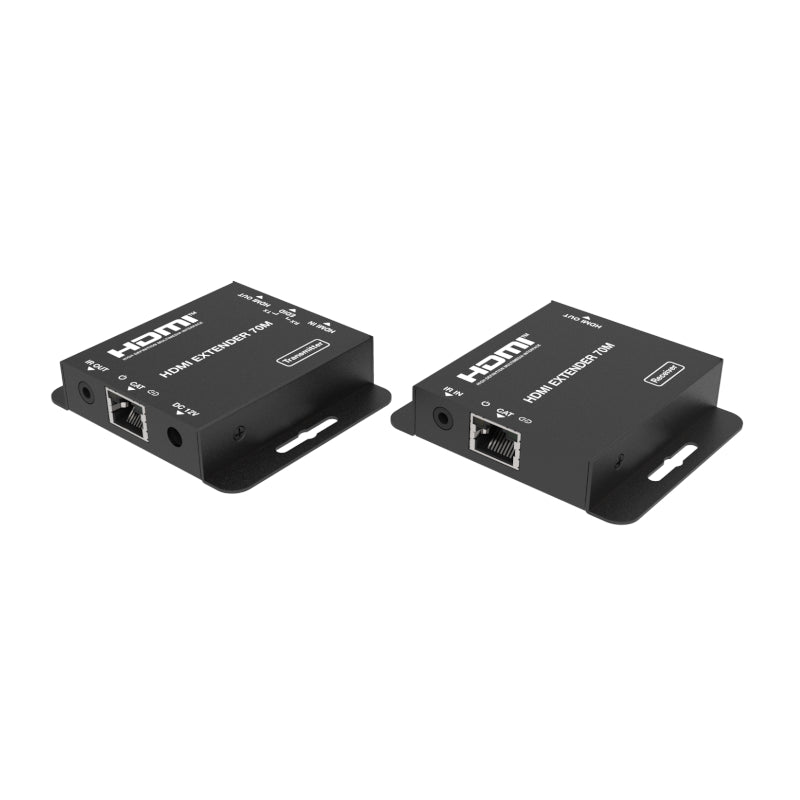

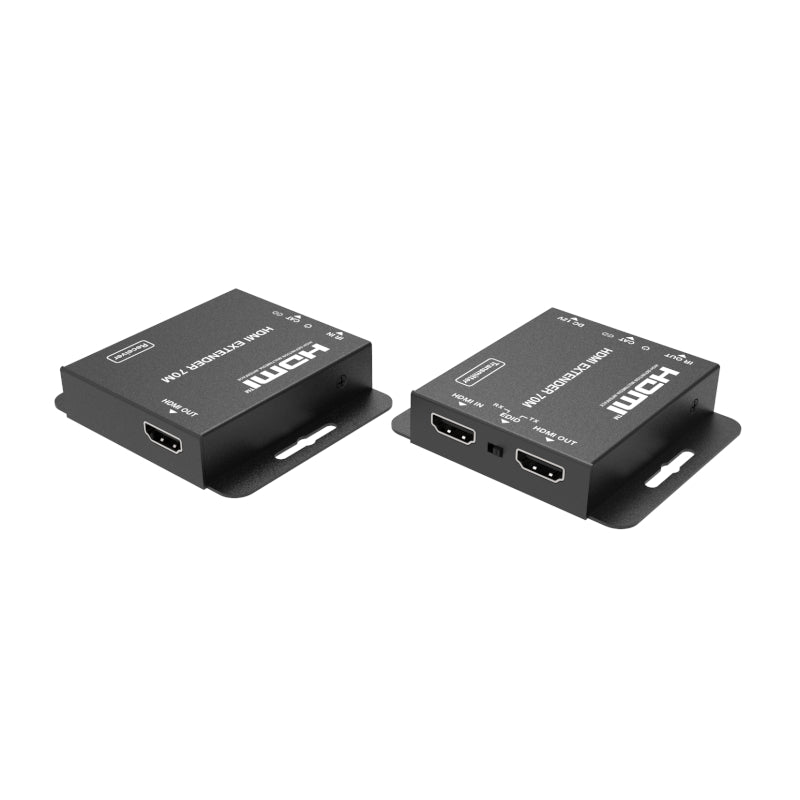

HDCVT HDMI1.4 70m Extender with IR

The HDCVT HDMI1.4 70m Extender with IR provides a high-performance solution for transmitting uncompressed high-definition audio and video over long distances with zero delay. This versatile system supports 4K resolution and integrated IR control, making it an ideal choice for multimedia conference halls, digital classrooms, and large-screen display setups.

Key Specs

• HDMI Compliance: HDMI 1.4
• HDCP Compliance: HDCP 1.4
• Video Bandwidth: 10.2Gbps
• Maximum Resolution: Up to 4K@30Hz YUV 4:4:4
• Transmission Distance (CAT6): 70m for 1080p, 40m for 4K30
• Transmission Distance (CAT5E): 60m for 1080p, 35m for 4K30
• Audio Support: Up to 7.1CH HD audio (PCM7.1, Dolby True HD, DTS HD)

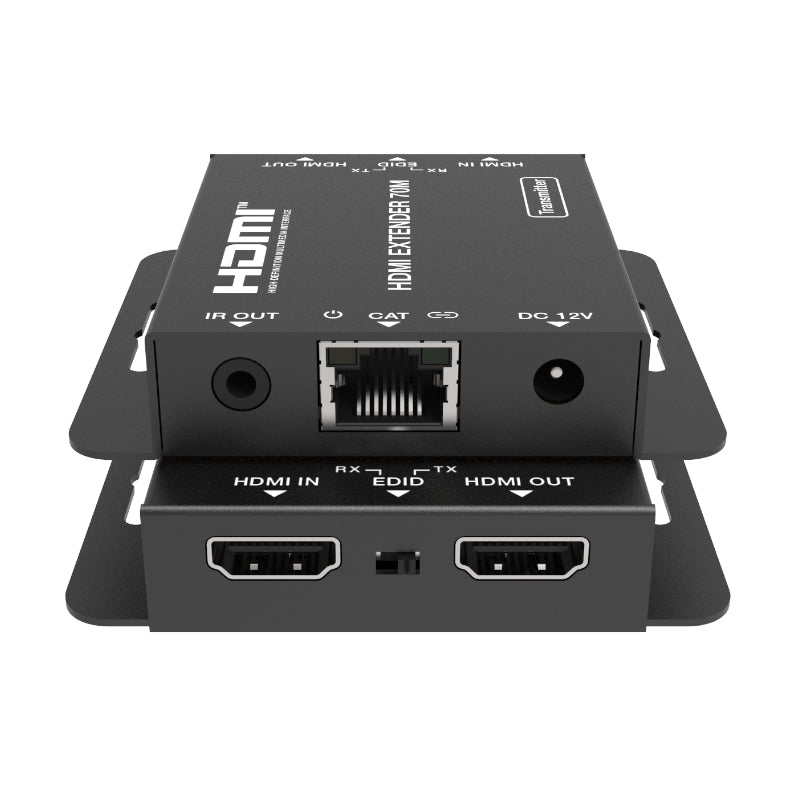

• Transmitter Ports: 1x HDMI Input, 1x HDMI Loop Output, 1x IR Output, 1x CAT Output

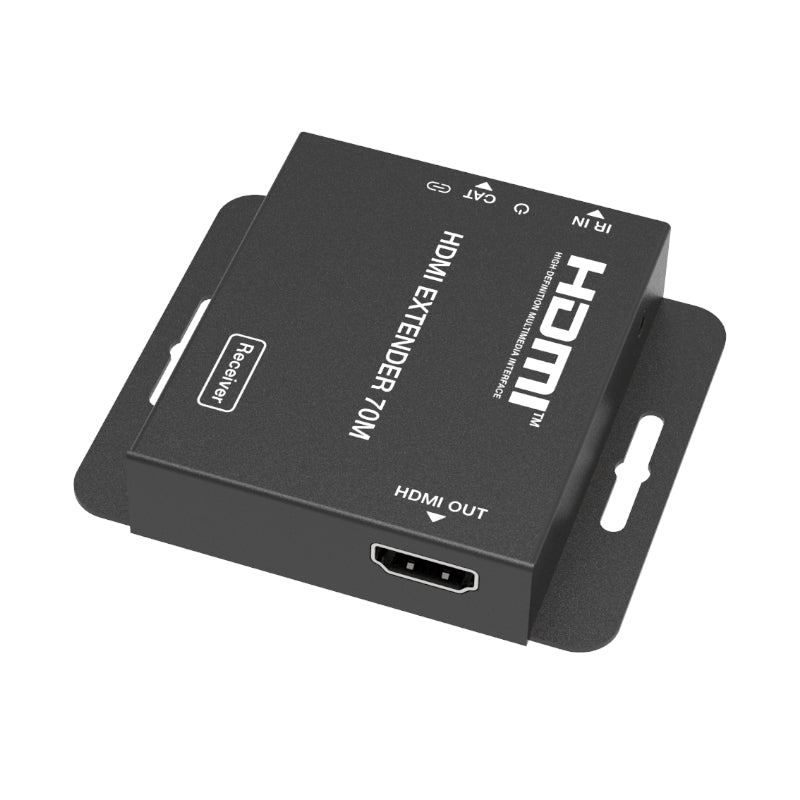

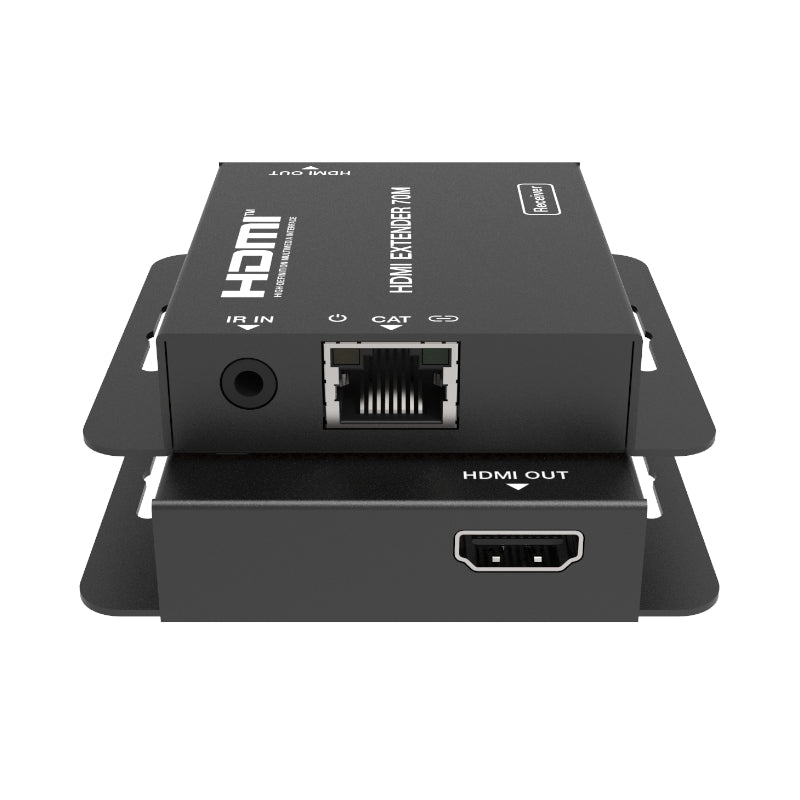

• Receiver Ports: 1x HDMI Output, 1x IR Input, 1x CAT Input
• Power Features: One-way POC (Transmitter to Receiver)
• EDID Management: Copy EDID from Receiver or Loop Out display
• Housing: Black metal enclosure
• Dimensions: 7.9 x 6.9 x 1.7 cm
• Weight: Transmitter 132g, Receiver 130g

12 Months warranty
