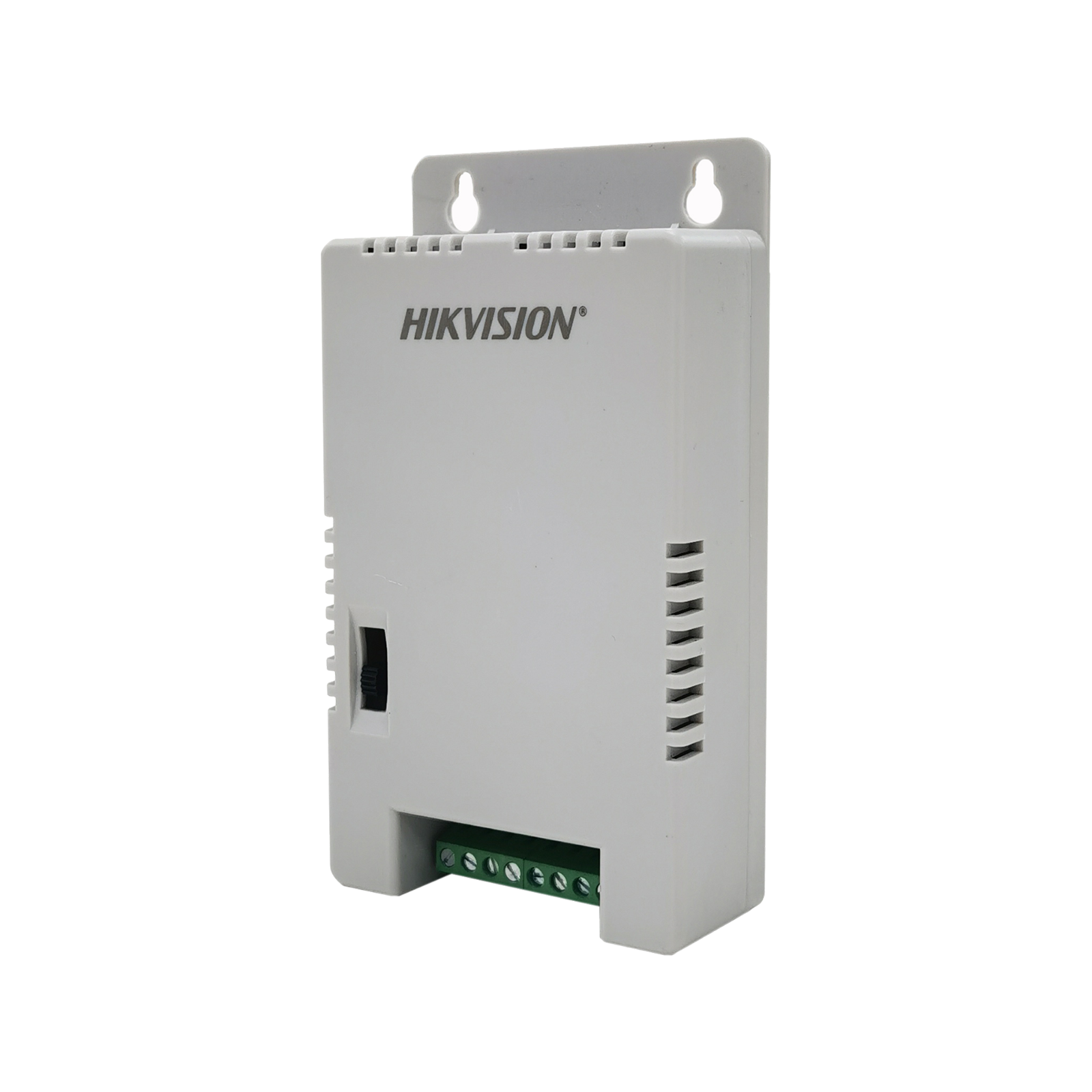

Hikvision 4 Channel Switching Mode Power SUPPLY

This 4-channel Hikvision switching mode power supply powers four 12 V cameras from one tidy wall-mounted box, with each channel delivering up to 1 A. Selectable higher output voltages compensate for voltage drop on long cable runs.

Key Specs

• Output: 12 VDC at up to 1 A per channel, 48 W total across 4 channels
• Cable length compensation: selectable 12 V, 13.5 V or 15 V output for long camera cable runs
• Wide voltage input: 150 to 285 VAC, 47 to 63 Hz
• Protection: over current, short circuit and over voltage protection with good EMC performance
• Grid terminal DC outputs and green LED indicator
• Compact white metal enclosure, 144 mm x 80 mm x 33 mm
• Operating conditions: 0 to 40 degrees C, 10 to 95 percent humidity non-condensing
