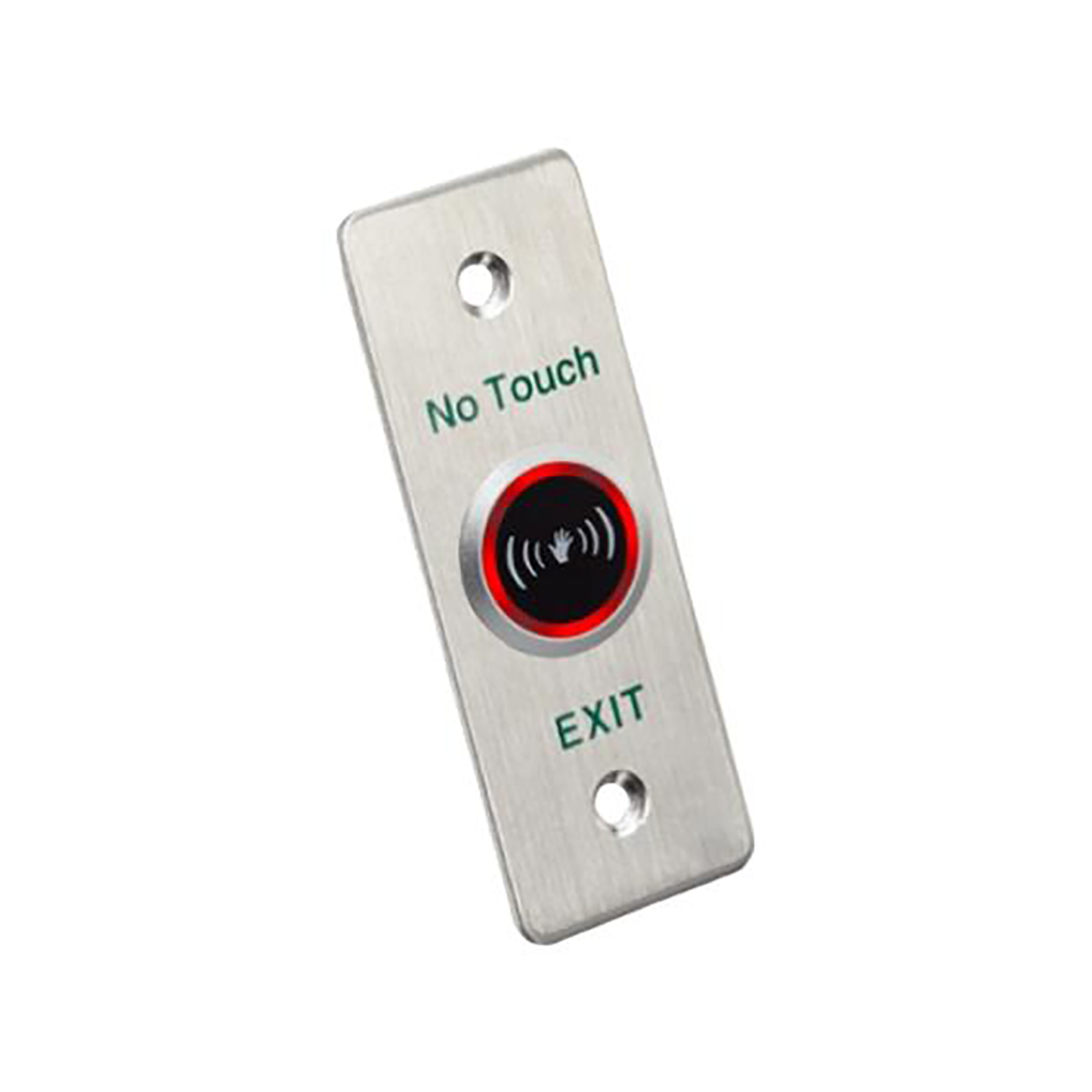

Hikvision No-Touch Exit Button

Wave-to-exit button for access controlled doors: hold a hand near the sensor and the door releases, with no contact needed. Well suited to clinics, kitchens and other hygiene-sensitive or hands-full environments.

Key Specs

• No-touch infrared sensing with adjustable 40mm to 100mm detection distance
• Output contacts: NO, NC and COM
• Switch rating: 1A at 30VDC, 0.5A at 125VAC
• Power: 12VDC input, 20mA standby, 50mA working
• Slim 90mm x 35mm x 37.7mm panel fits narrow door frames
• Working temperature: -20 to 50 degrees C
• Tested to 1 million operations
