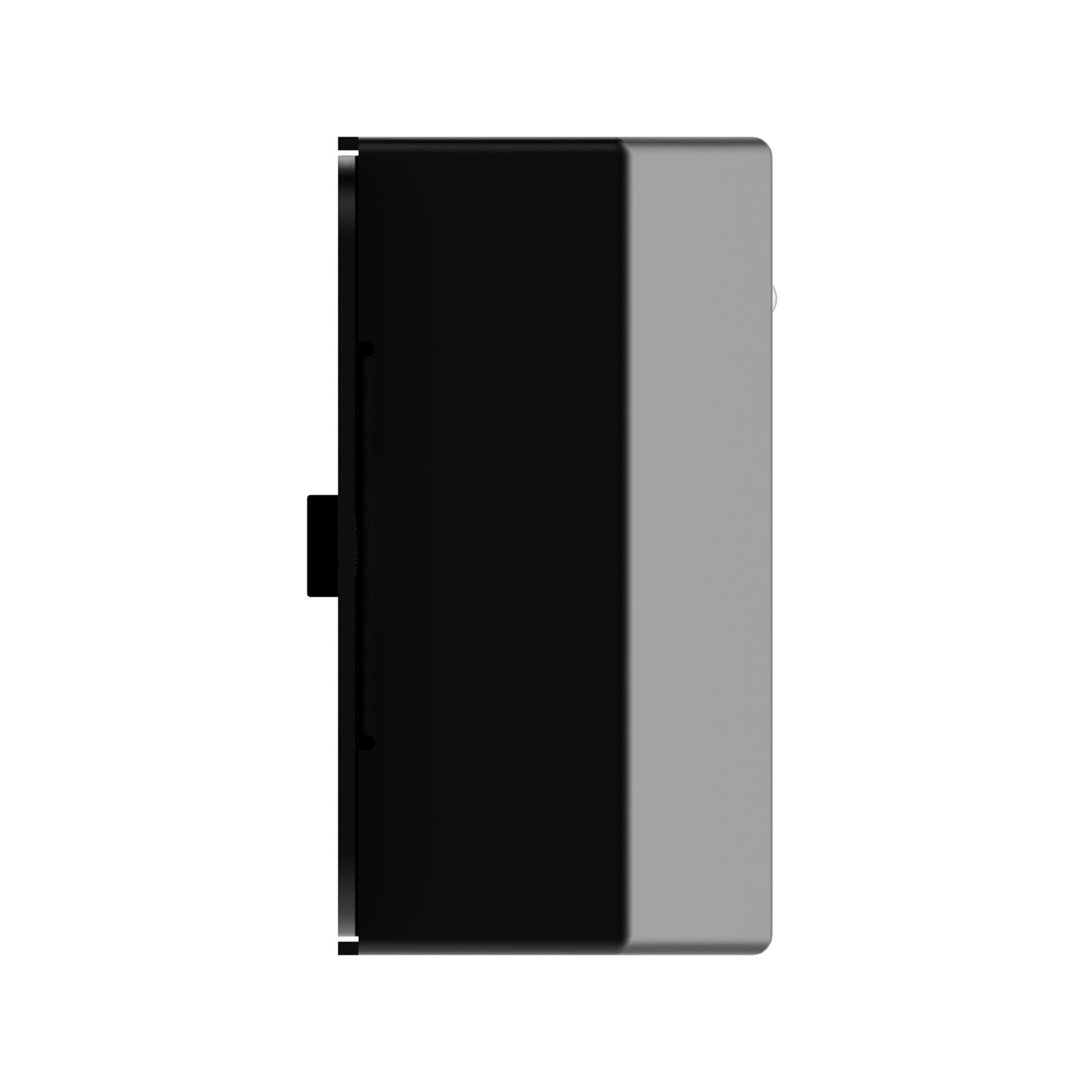

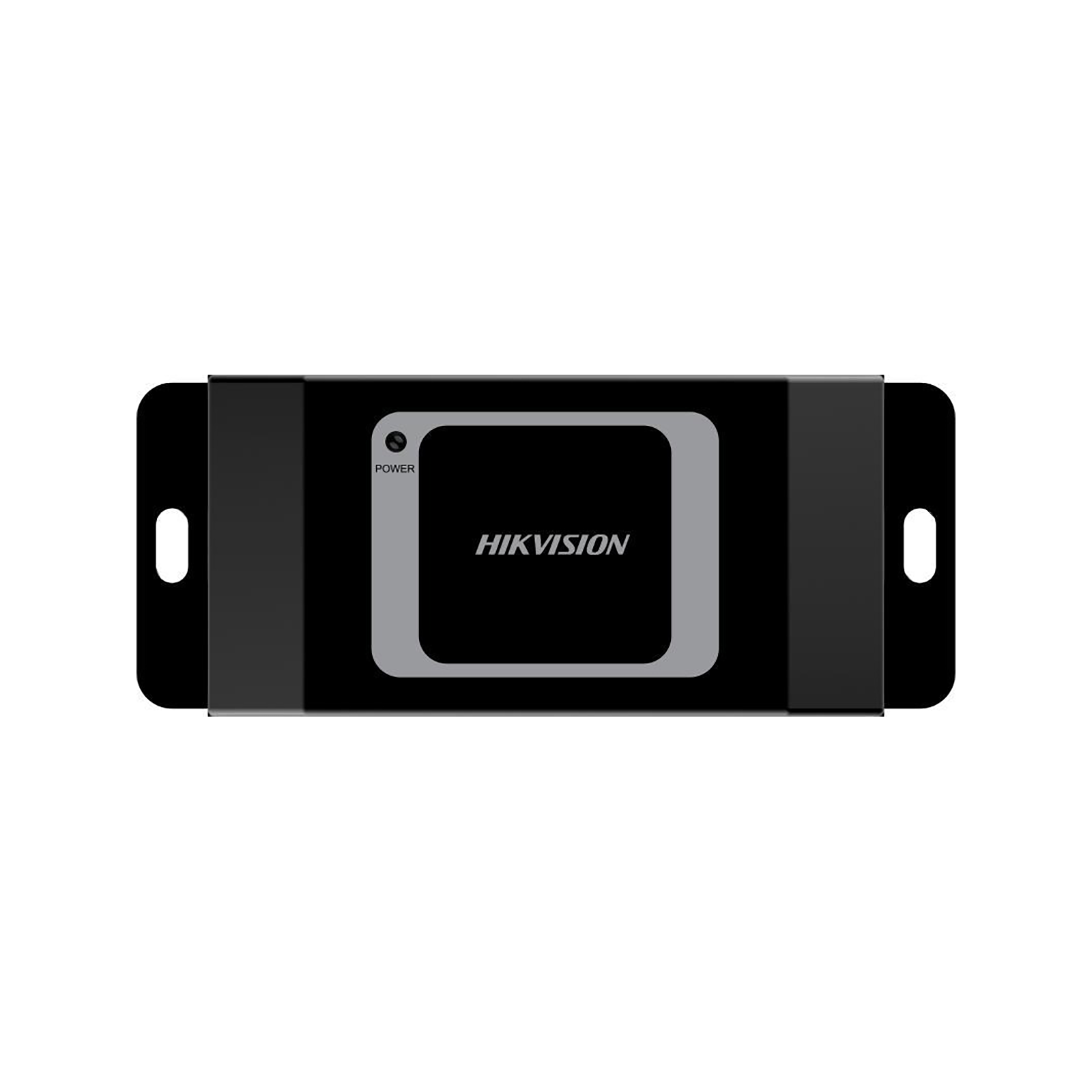

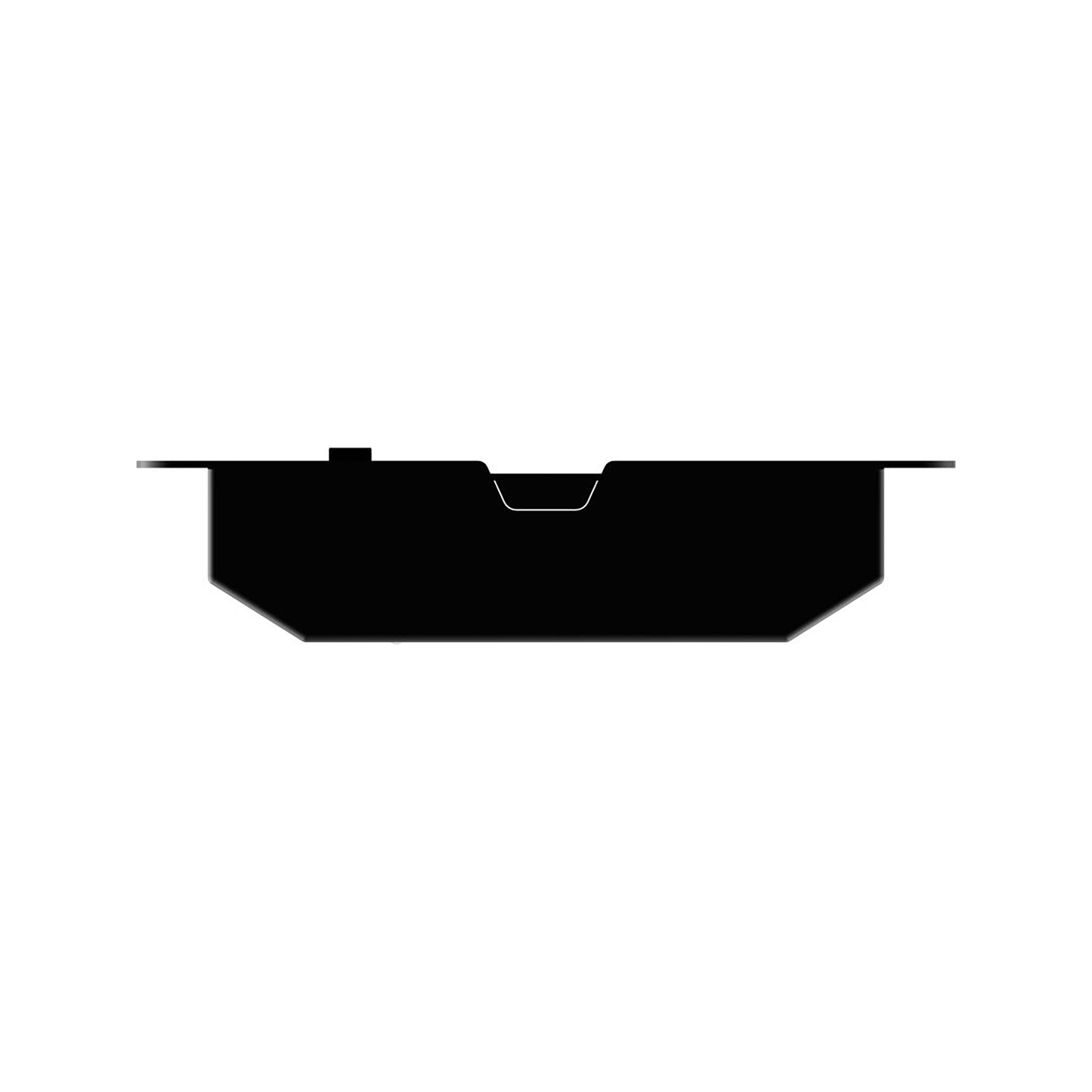

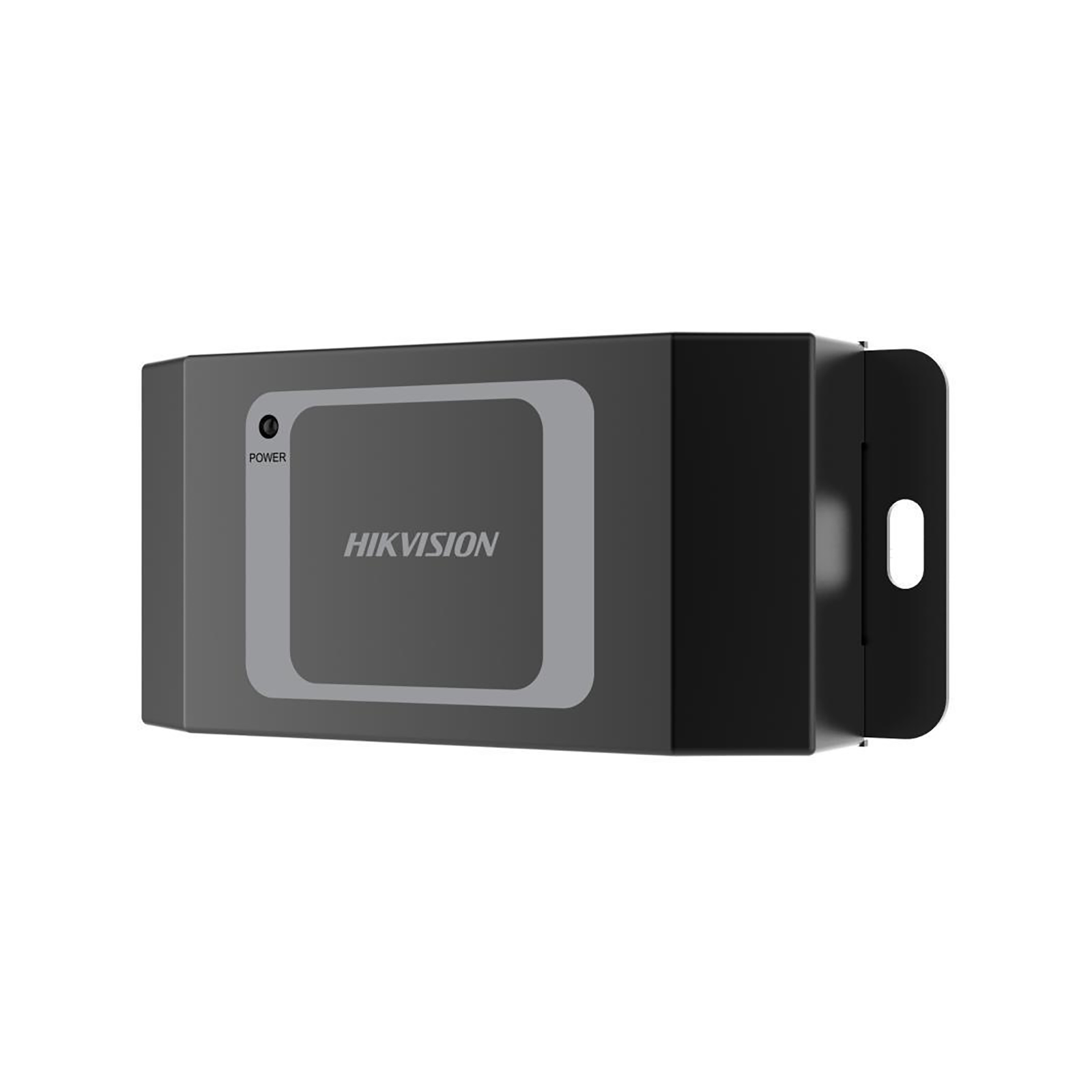

Hikvision Secure Door Control Module

Secure door control unit that sits on the protected side of the door, between a Hikvision access control terminal and the lock. Even if the outside reader or terminal is vandalised, the lock relay stays safely indoors and the door stays closed.

Key Specs

• Communicates with the access control terminal via RS-485 to execute open, close, normally open and normally closed commands
• Connects the lock, exit button and door contact, plus 2 alarm inputs and 1 alarm output
• Wiegand interface for connecting a Wiegand card reader
• Tampering alarm supported; fire interface and exit button linkage
• 4-channel DIP switch for ID configuration
• Power: 12VDC, 0.5A
• Working temperature: -40 to 70 degrees C; wall mounted; 48mm x 115mm x 26mm
