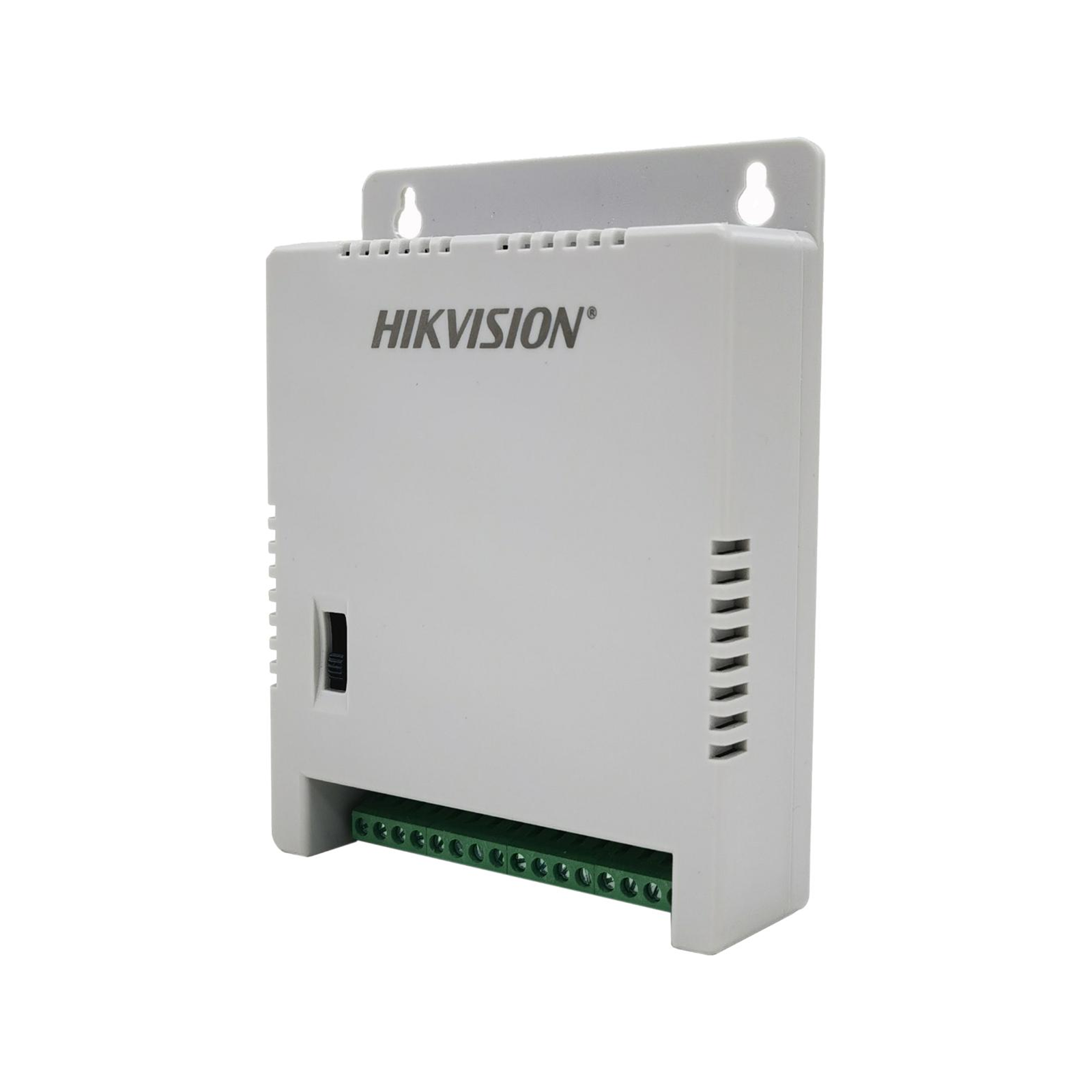

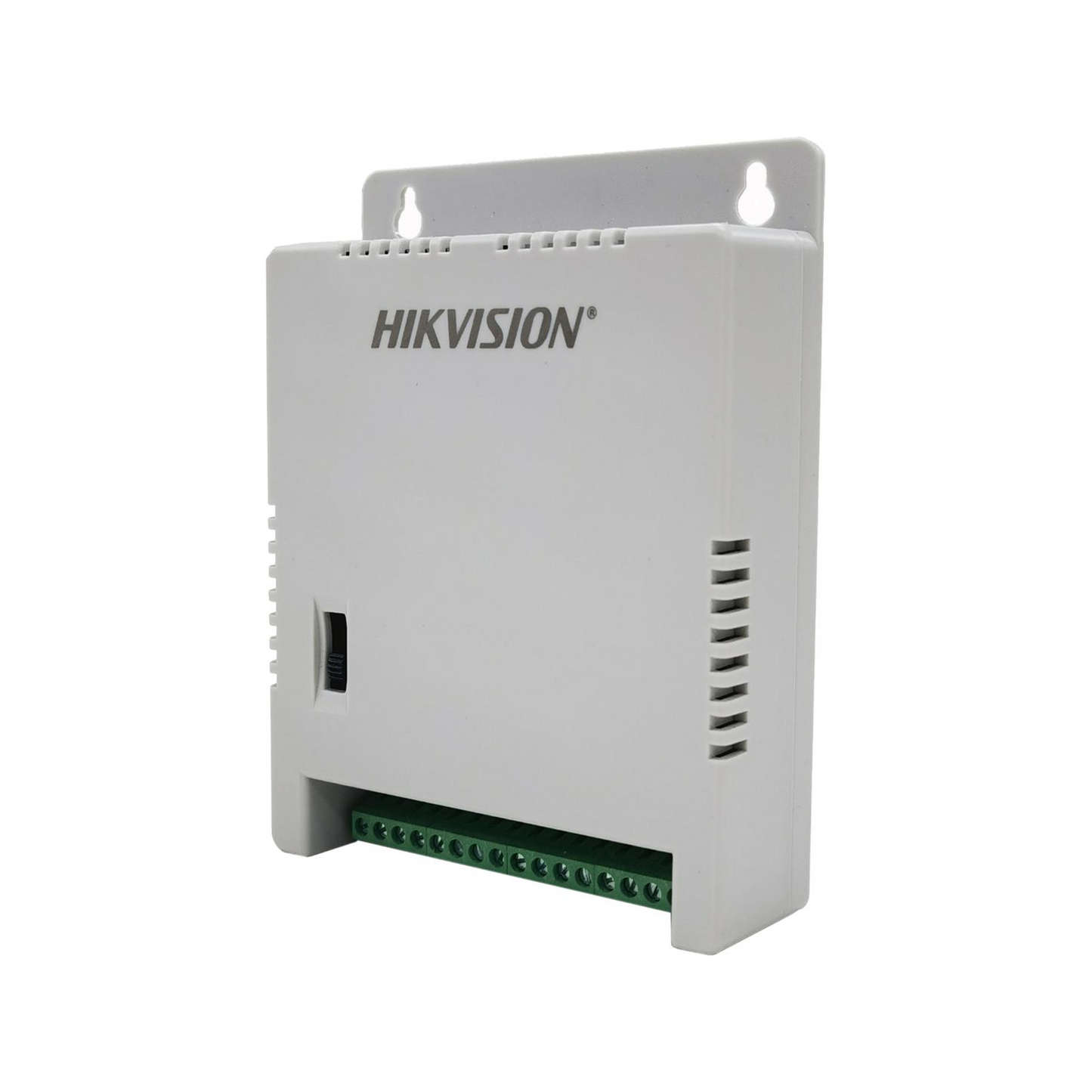

Hikvision Switching Mode Power Supply

This Hikvision switching mode power supply runs up to eight 12 V cameras from a single wall-mounted unit, replacing a tangle of individual plug adapters. Each output is individually limited to 1 A with a 5 A total budget across the unit.

Key Specs

• Output: 12 VDC at up to 1 A per channel, maximum total current 5 A (60 W)
• 8 output channels via grid terminal connections, confirmed by retailer listings
• Cable length compensation: selectable 12 V, 13.5 V or 15 V output for long camera cable runs
• Wide voltage input: 150 to 285 VAC, 47 to 63 Hz
• Protection: over current, short circuit and over voltage protection with good EMC performance
• Compact white metal enclosure, 144 mm x 109.5 mm x 33 mm, with green LED indicator
• Operating conditions: 0 to 40 degrees C, 10 to 95 percent humidity non-condensing
