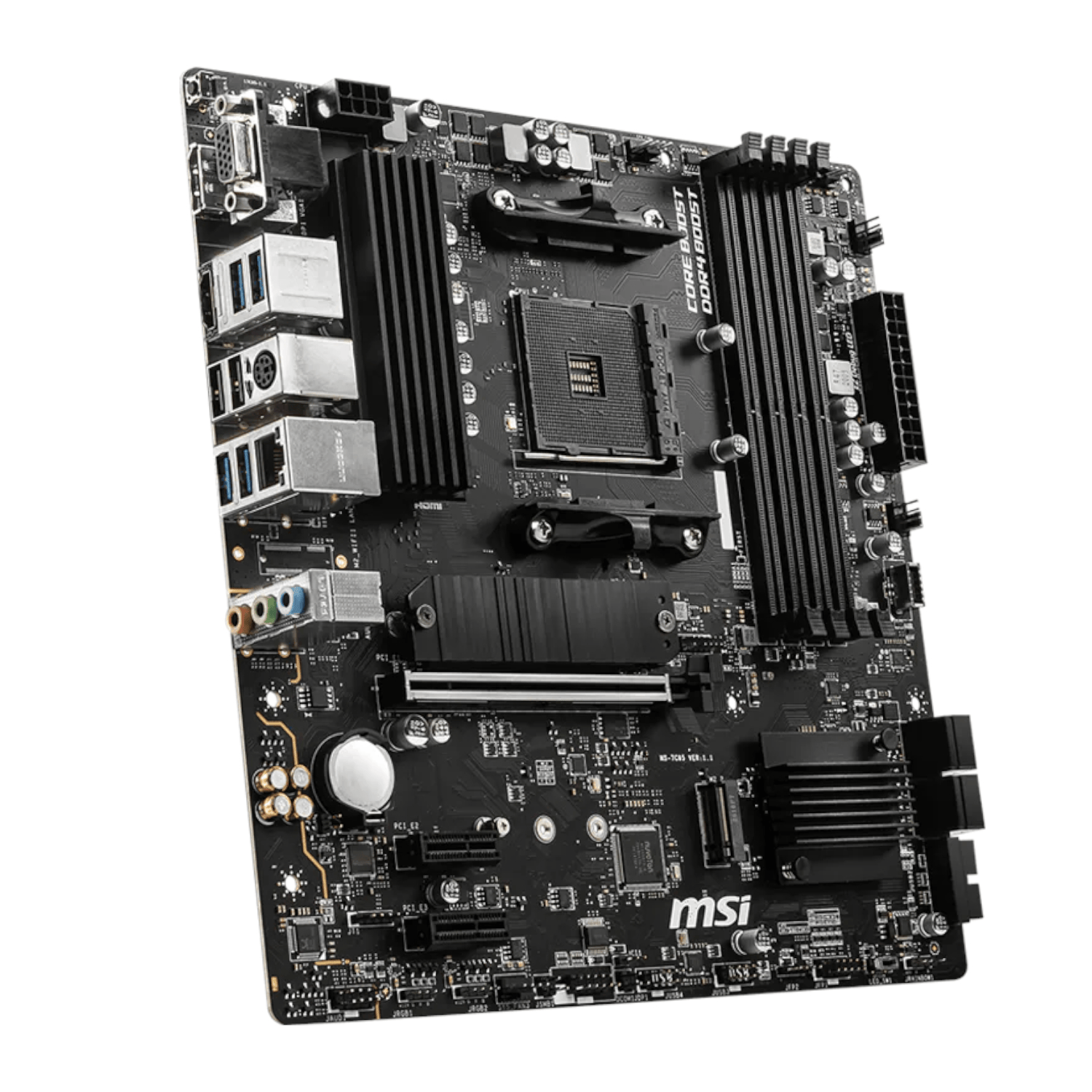

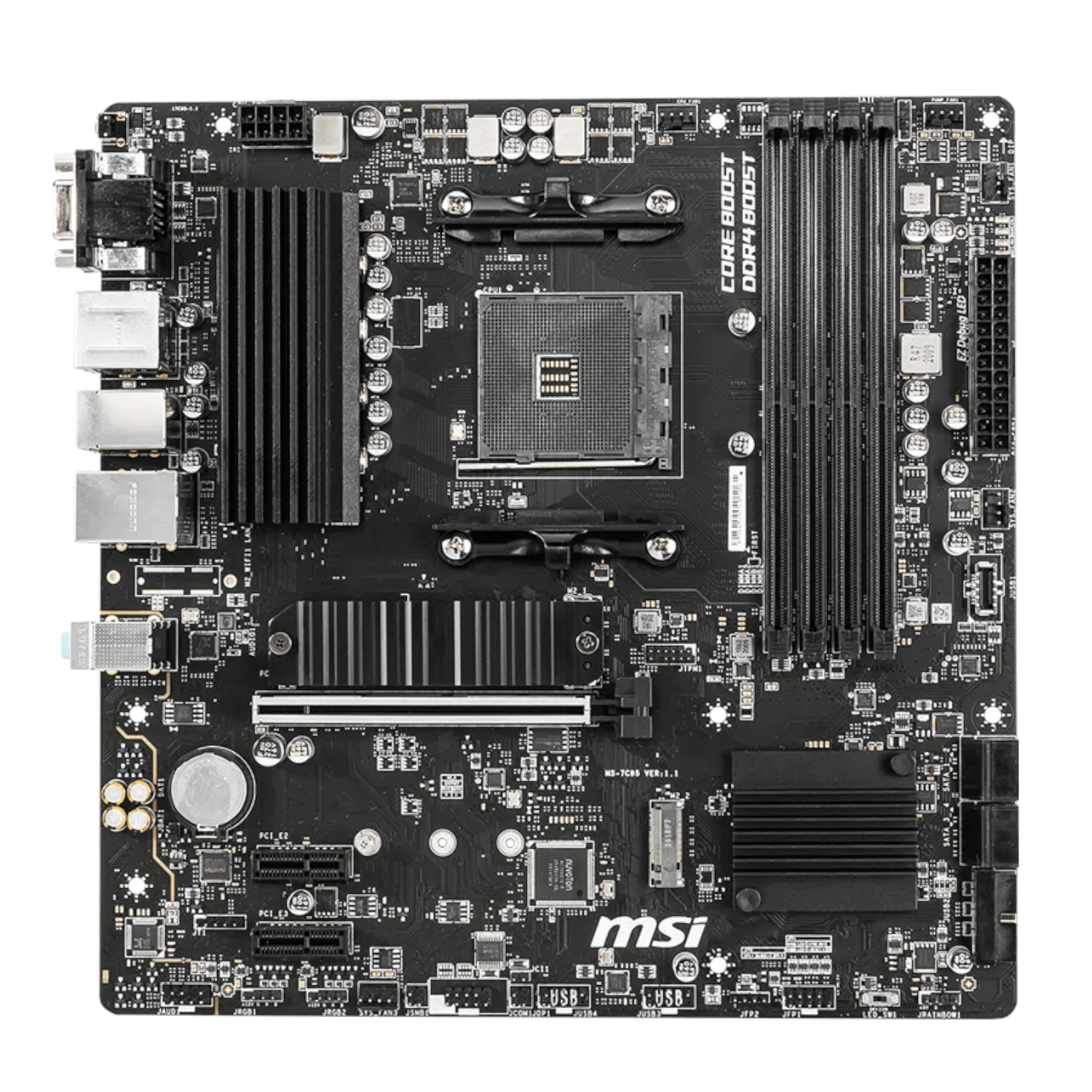

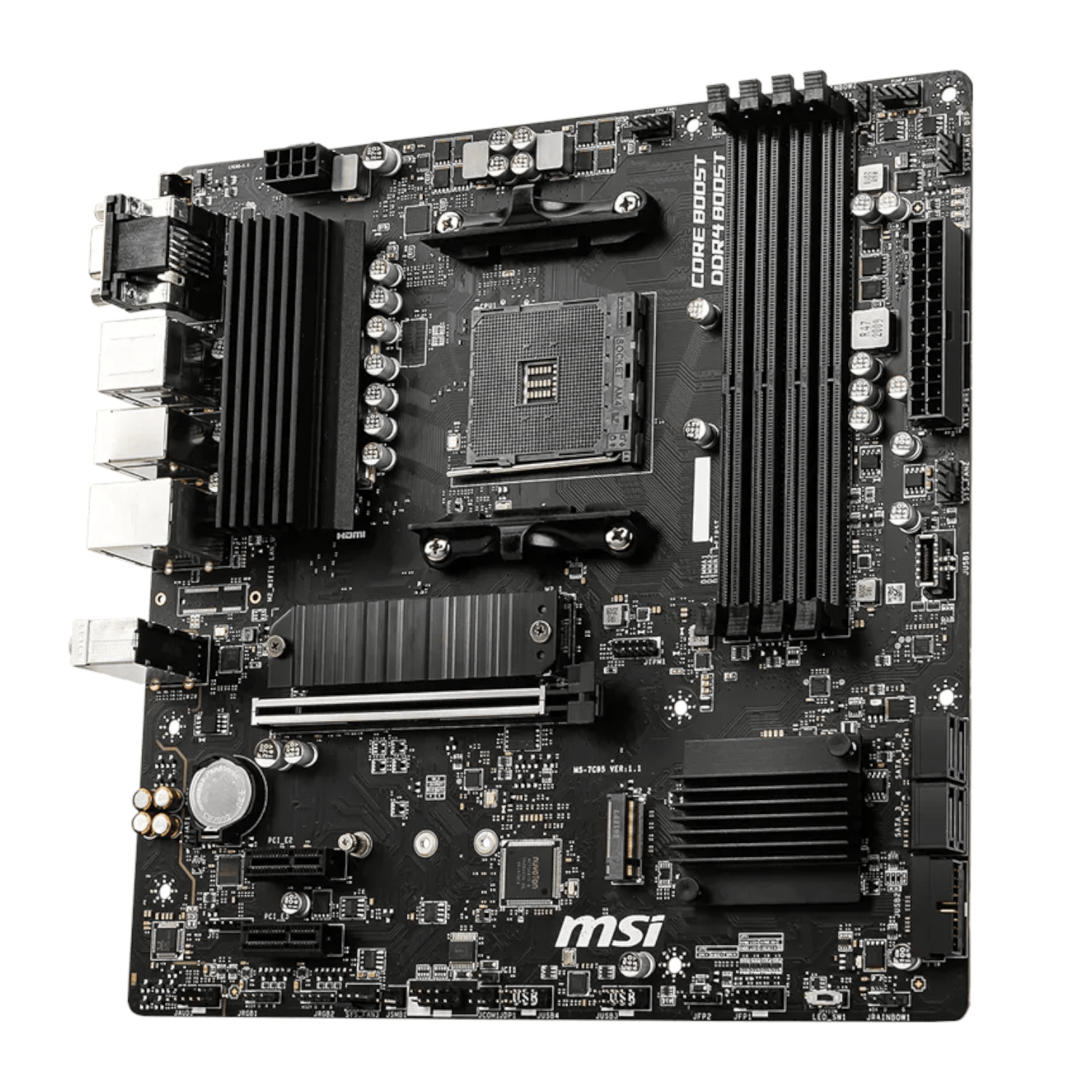

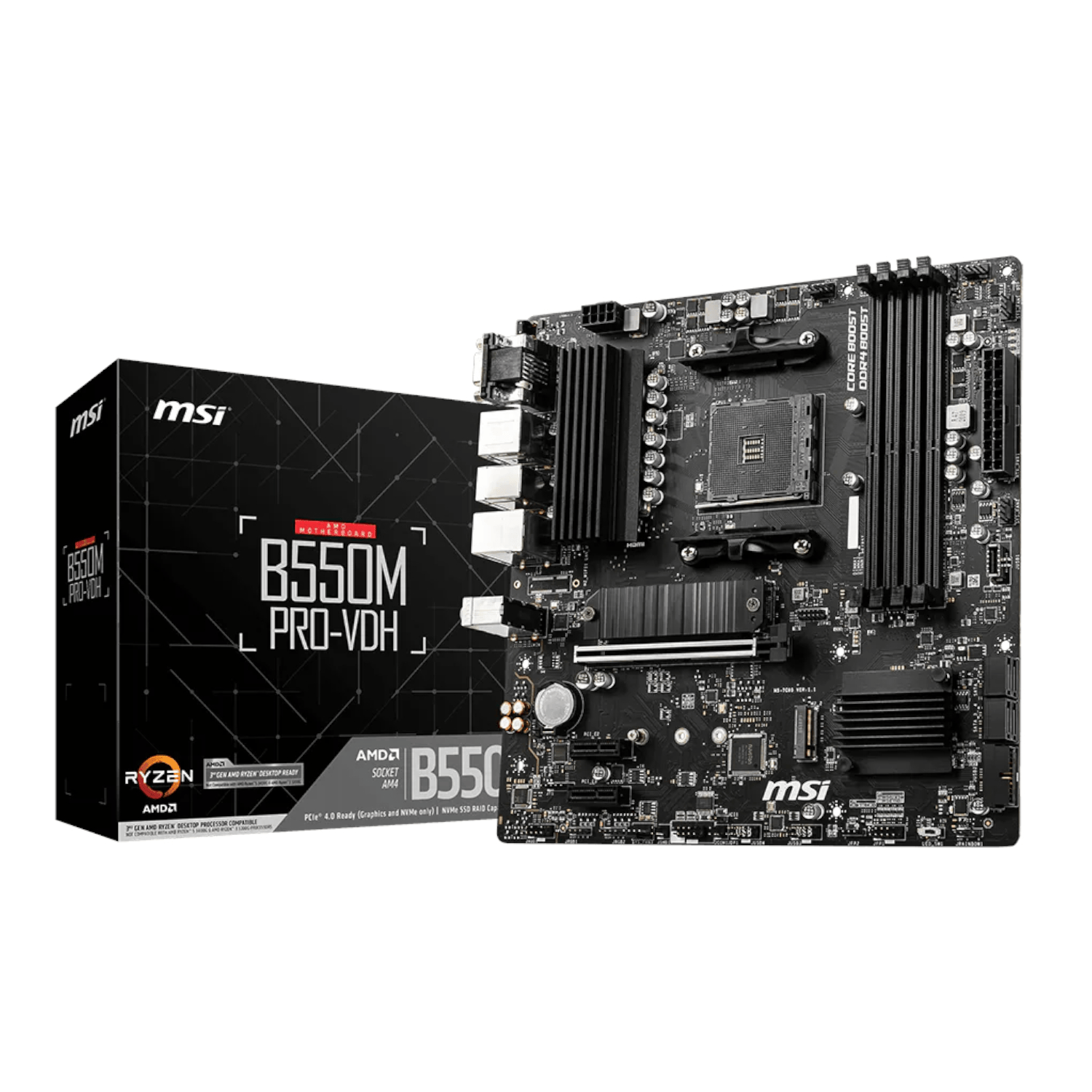

MSI B550M PRO-VDH AM4 M-ATX Motherboard

The MSI B550M PRO-VDH AM4 M-ATX Motherboard provides a dependable and high-performance foundation for your next AMD Ryzen build, offering PCIe 4.0 support for ultra-fast storage. Designed for efficiency and stability, this compact board features advanced thermal shielding and a thickened copper PCB to ensure consistent power delivery and peak signal integrity during demanding workloads.

Key Specs

• Chipset: AMD B550
• CPU Socket: AM4 (Supports Ryzen 5000, 4000 G-Series, and 3000 Series; excludes 3400G/3200G)
• Form Factor: Micro-ATX
• Memory Support: 4x DDR4 slots, up to 128 GB (Dual-channel)
• Memory Speed: Up to 4400 MHz (A-XMP OC mode)
• Storage Interface: 1x PCIe 4.0 x4 M.2 slot, 1x PCIe 3.0 x4 M.2 slot, 4x SATA 6 Gb/s ports
• Thermal Management: M.2 Shield Frozr heatsinks
• Expansion Slots: 1x PCIe 4.0/3.0 x16 slot

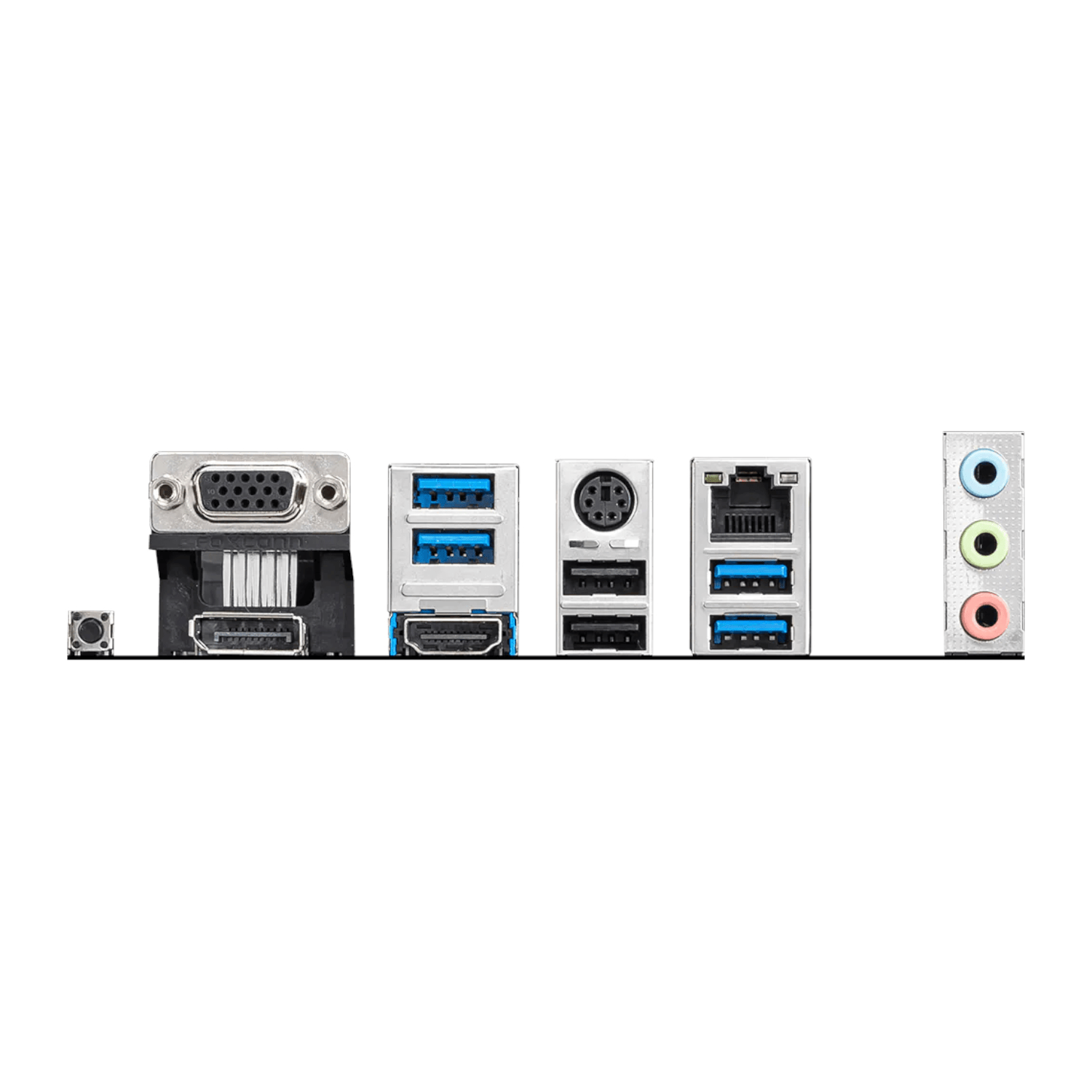

• Display Outputs: 1x HDMI 2.1, 1x DisplayPort, 1x VGA (Triple display support)
• Audio: Realtek ALC892/ALC897 7.1-channel HD audio
• Networking: Realtek 8111HN Gigabit LAN (1 Gbps)
• Special Features: Flash BIOS Button, Core Boost, DDR4 Boost, 2 oz thickened copper PCB

36 Months warranty
