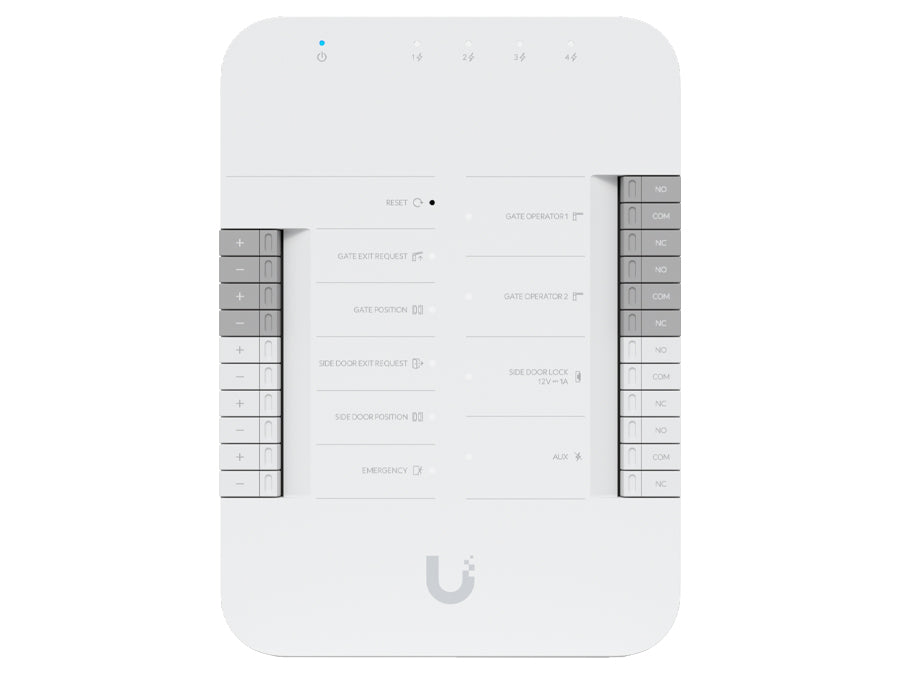

Ubiquiti UniFi Access Gate Hub 5x Input, 4x Relay

The Ubiquiti UniFi Access Gate Hub provides a streamlined, indoor solution for managing single-gate access control with professional precision. This compact hub offers versatile entry options, allowing users to unlock gates via NFC cards, the UniFi Identity mobile app, or automated license plate recognition when integrated with a UniFi Protect AI Camera.

Key Specs

• Ethernet Ports: 5x 10/100/1000
• PoE Input: 802.3at (PoE++)
• PoE Output: 4x Gigabit Ethernet ports with 802.3af PoE out
• Input Terminals: 1x Gate exit request, 1x Gate position, 1x Side door exit request, 1x Side door position, 1x Emergency
• Dry Output Relay: 2x Operator (rated 30V DC, up to 1A), 1x Aux (rated 30V DC, up to 1A)
• Wet Output Relay: Side door lock (12V DC, up to 1A)
• Max Power Consumption: 22W
• Operating Temperature: -30 to 60° C
• Mounting: DIN-rail
• Dimensions: 175 x 126 x 26 mm
• Weight: 460g
• Additional Features: Reset button, Dry/Wet switch

What's in the Box

• DIN-rail

1 Year warranty
