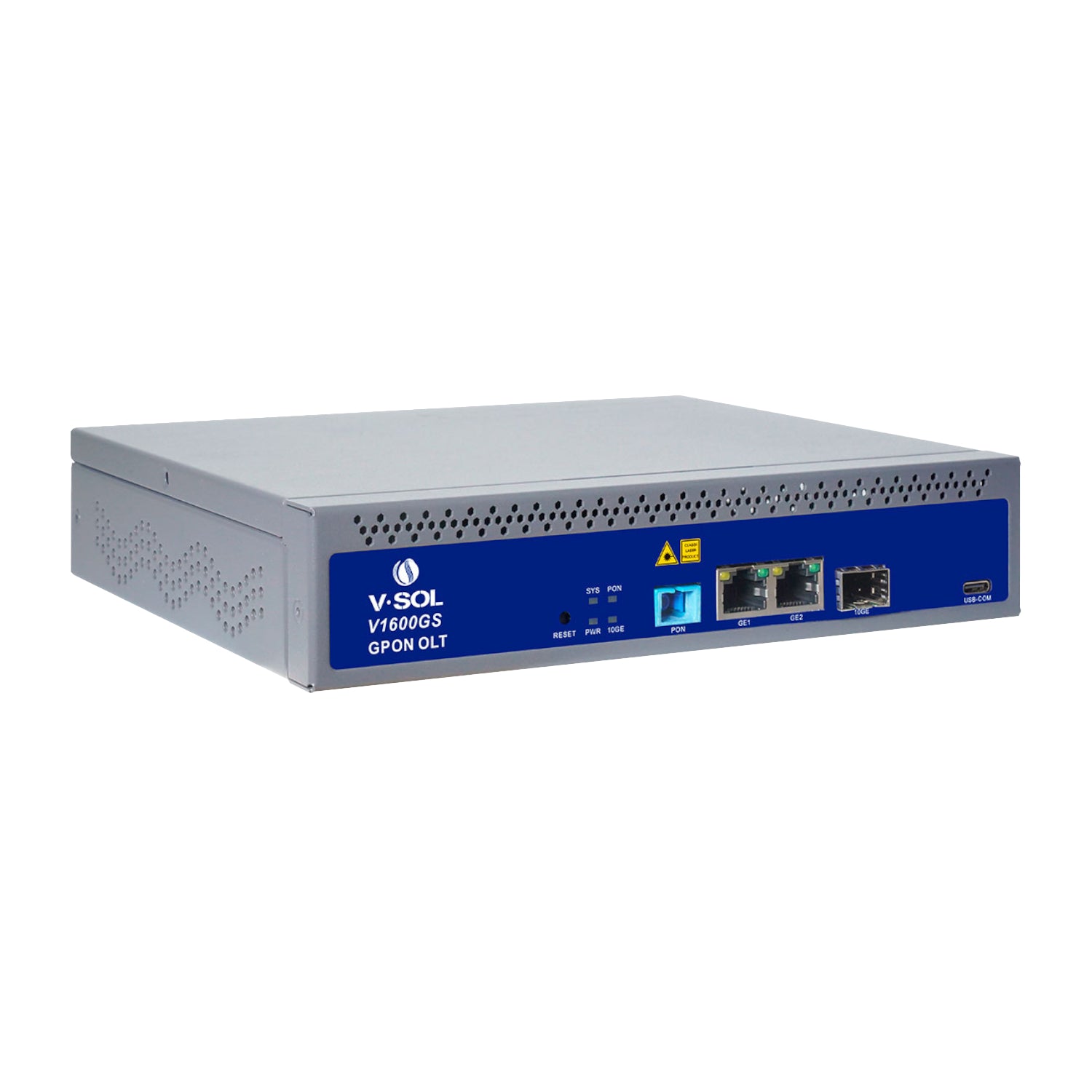

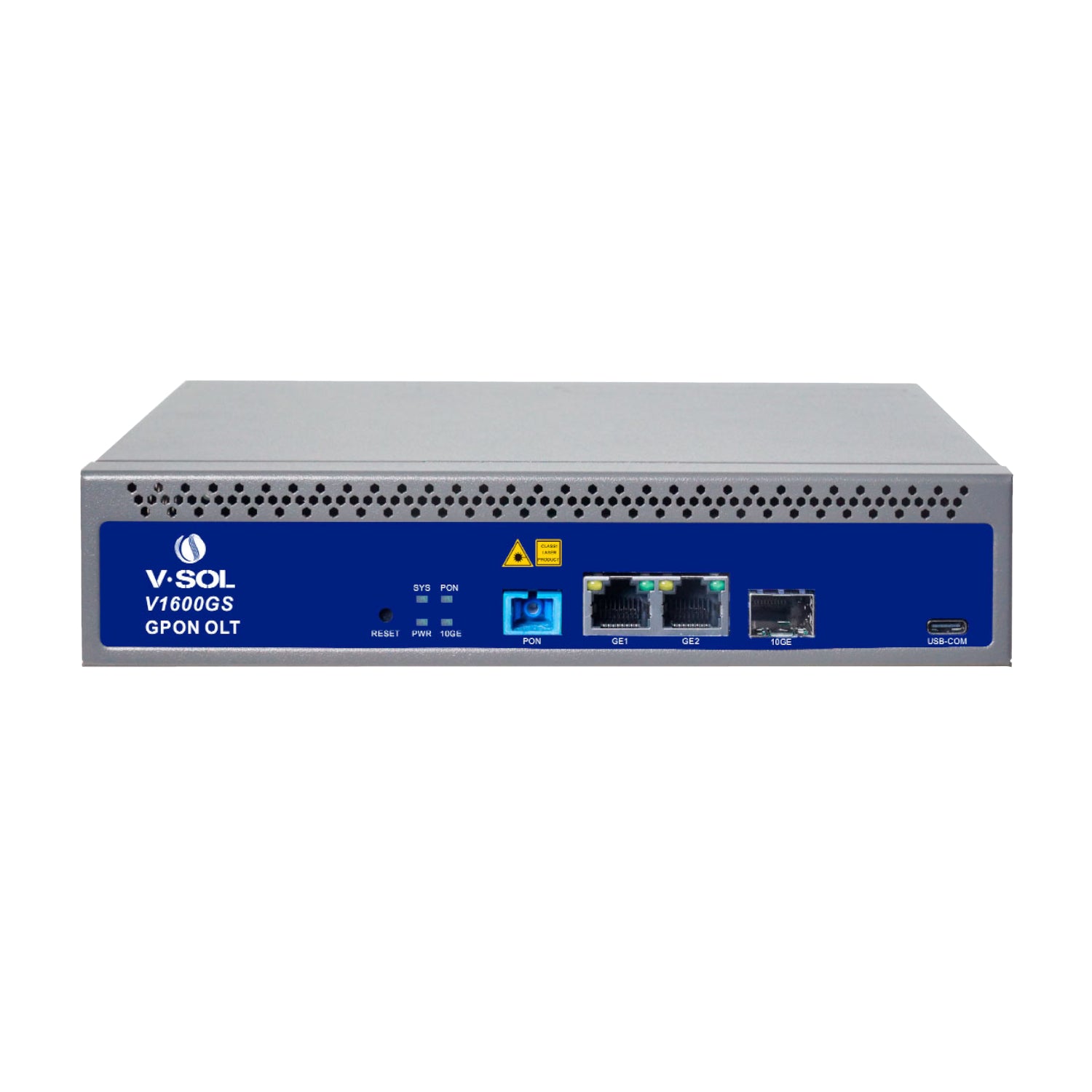

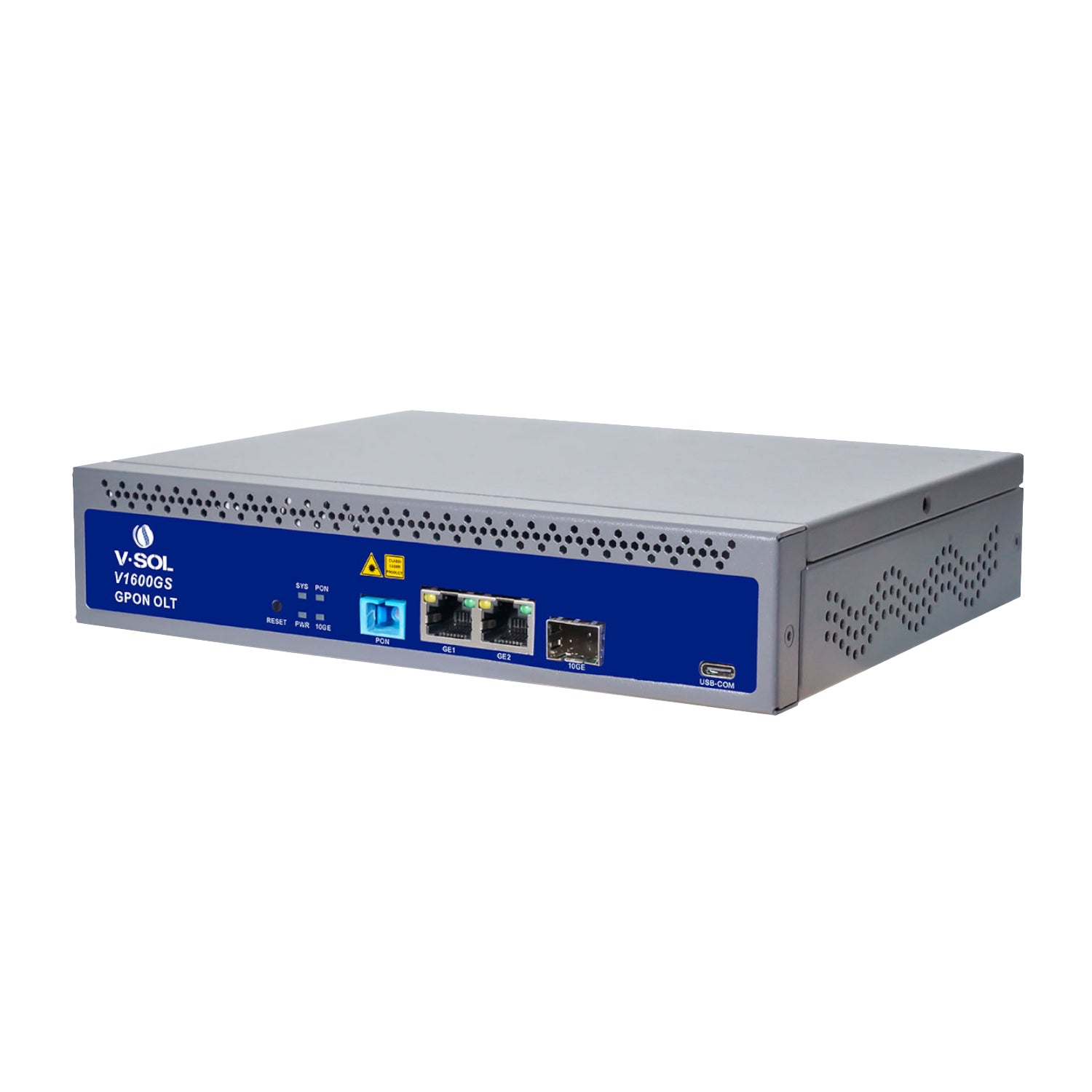

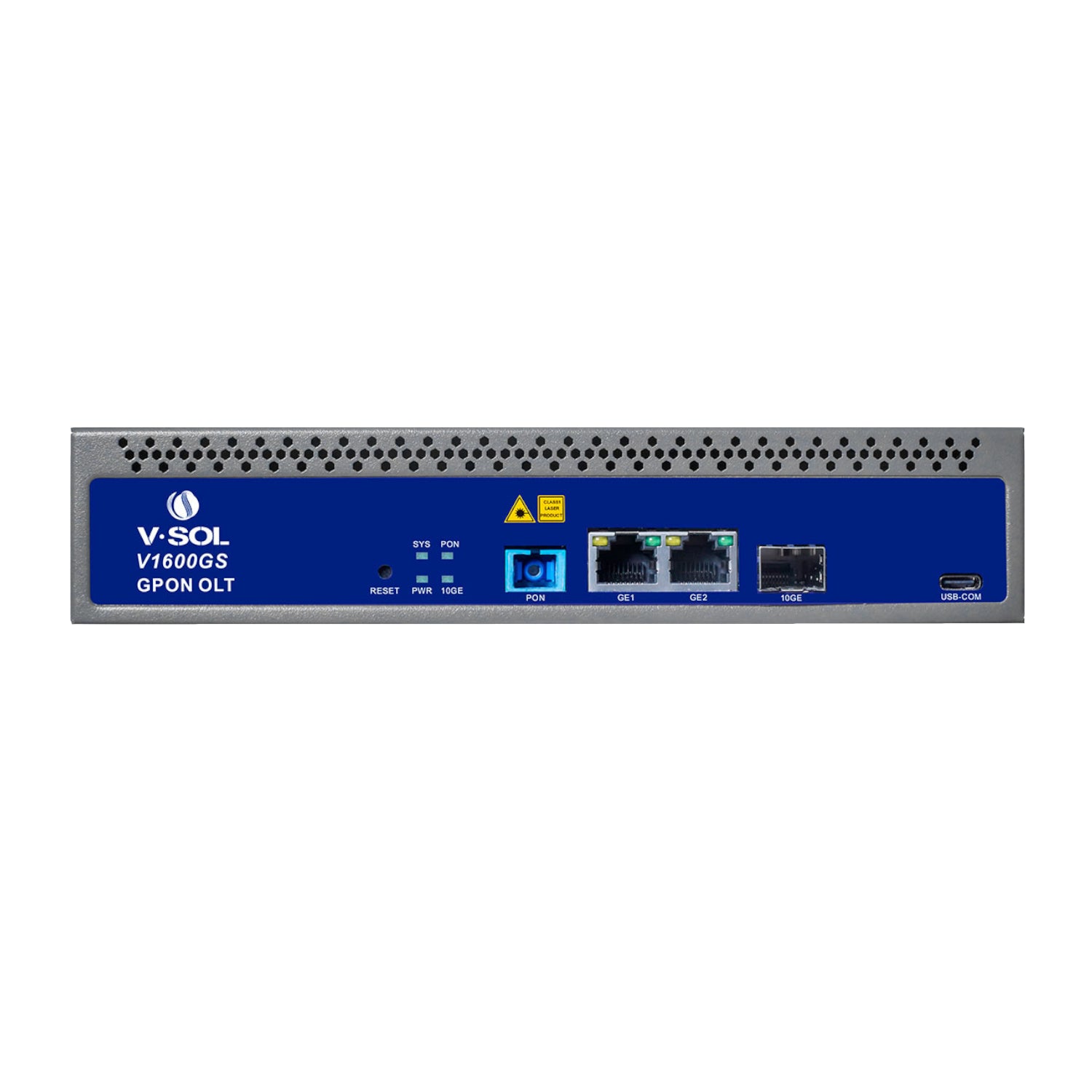

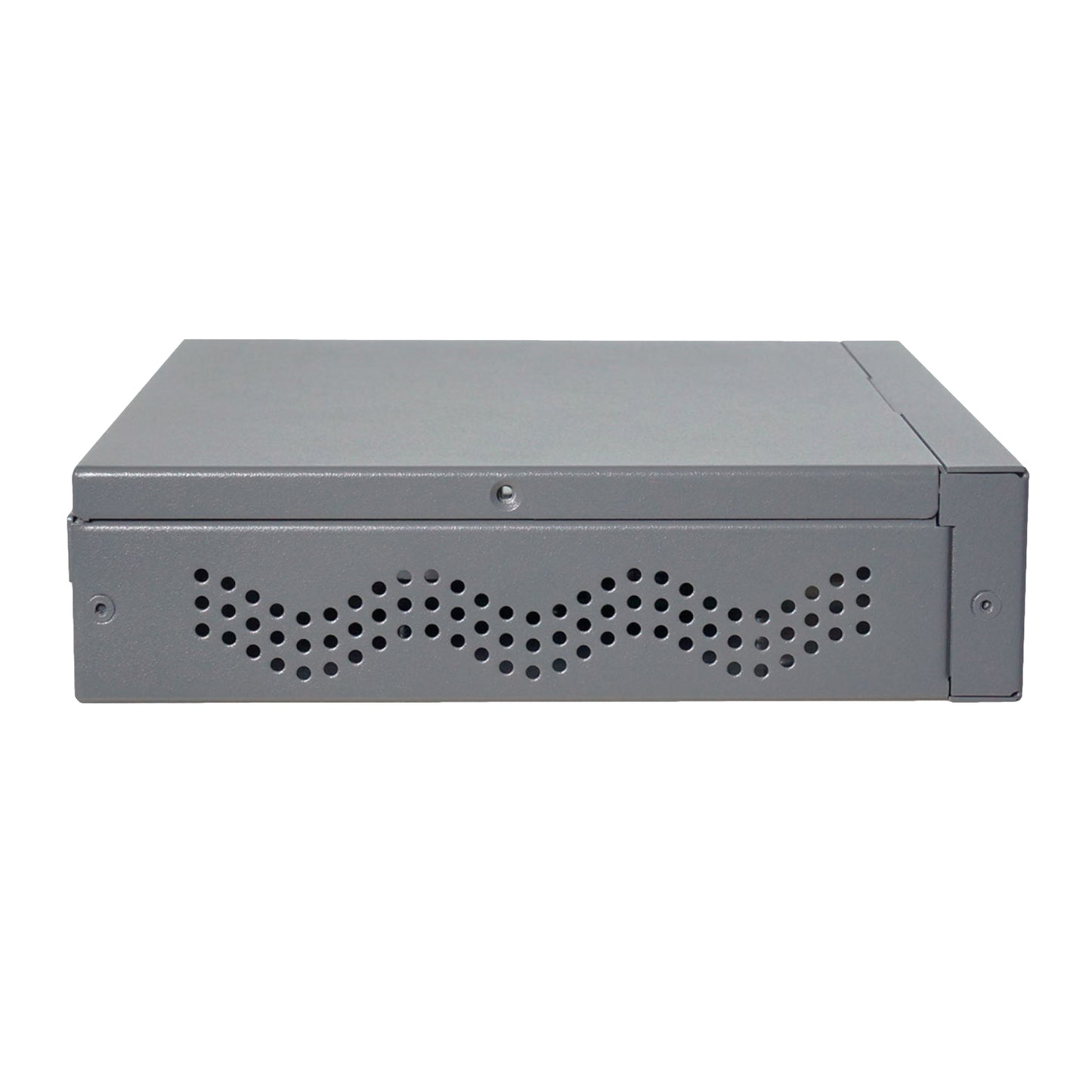

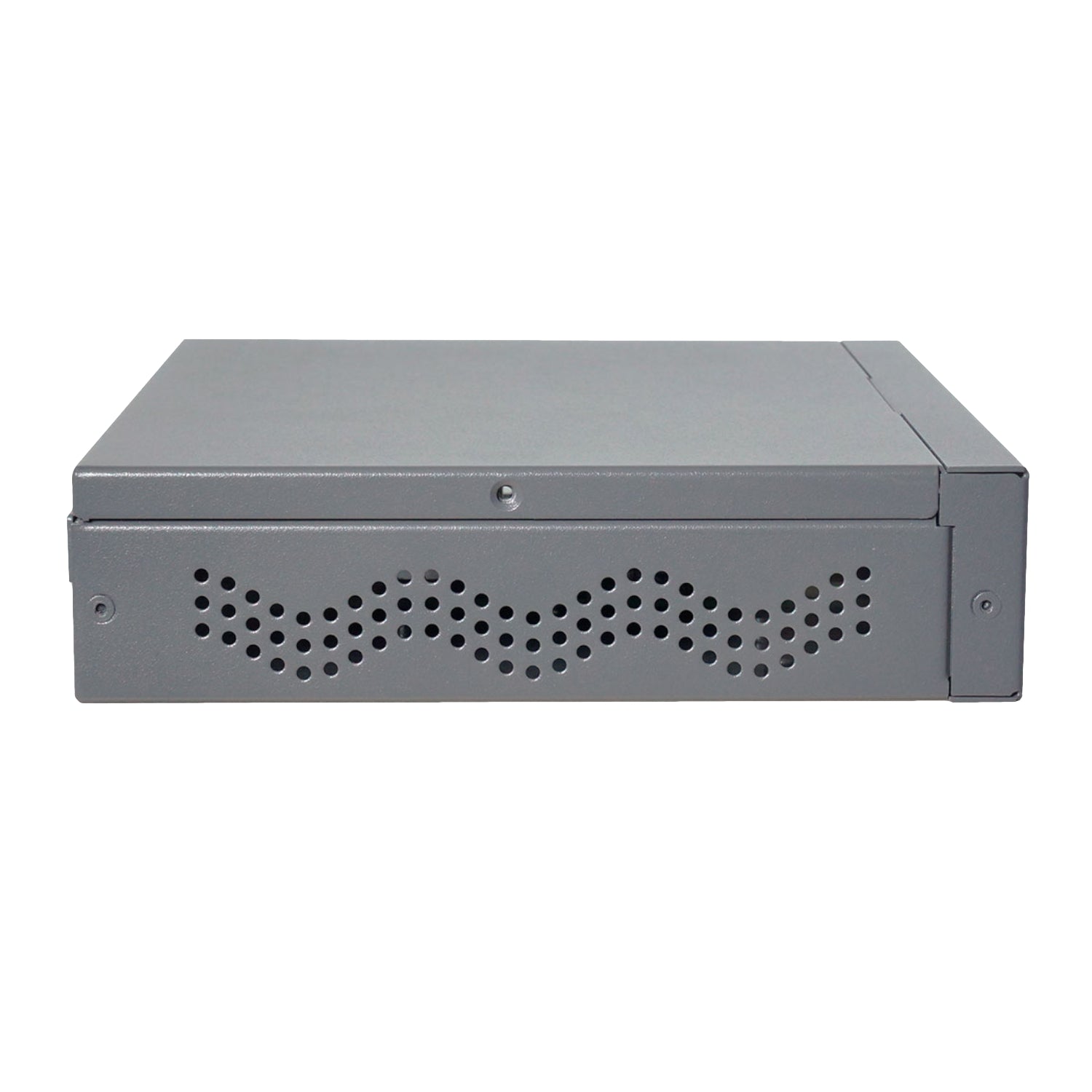

V-Sol V1600GS-F Single Port GPON Optical Line Terminal

The V-Sol V1600GS-F Single Port GPON Optical Line Terminal is a versatile, all-in-one networking solution designed to deliver high-speed fiber connectivity to small and medium-sized environments. This compact 1U device combines OLT, gateway, and AC controller functionality, making it an ideal choice for cost-effective FTTH deployments, SOHO setups, and enterprise-level data management.

Key Specs

• GPON Ports: 1
• Splitting Ratio: Up to 1:128
• Transmission Distance: Up to 20km
• Upstream Data Rate: 1.25Gbps
• Downstream Data Rate: 2.5Gbps
• Uplink Ports: 2 x Gigabit Ethernet RJ45, 1 x SFP/SFP+ combo port (up to 10Gbps)
• Form Factor: 1U Box
• Management Interfaces: WEB, Telnet, CLI, and SNMP
• Power Input: AC (100~240V) and DC (12V/2A)
• Protection: 4KV lightning protection (power), 1KV surge protection (interfaces)
• Features: Integrated Gateway and AC Controller, Plug-and-play AP control

12 Months warranty
